Engine Compression Diagnosis Tester Cylinder Leak Down Gauges Detector Leakage
Be the first review

SKU: AUTO-ENGN-TSTR-2C22R， new item!

In Stock

$28.45

Secured and trusted checkout with
Engine Compression Diagnosis Tester Cylinder Leak Down Gauges Detector Leakage
Features
  • UNIVERSAL FITMENT. Suits all local and imported cars and trucks, ideal for testing trucks and car models where clearance is minimal. check the amount of leakage in 4-stroke engines.
  • Designed to detect a variety of common engine faults such as worn piston rings, cylinder head cracks, worn valves and blown head gaskets. It checks the amount of leakage in an engine cylinder and helps determine the source.
  • WORKING PRINCIPLE OF LEAKDOWN DETECTOR. Once the leakage tester has been connected to one of the cylinders, compressed air (45-100psi) is fed into that particular cylinder through the built in pressure regulator. Diagnosis is made by observing the amount of leakage that is indicated on the cylinder leakage gauge and by listening for leakage at various points of the cars system. Please note: This cylinder leak tester is not suitable for shallow cylinder.
  • PROFESSIONAL LEAKAGE DETECT FUNCTION. This cylinder leak tester checks the amount of leakage in an engine cylinder and helps determine the source. It is designed to detect a variety of common engine faults such as worn piston rings, worn valves, cylinder head cracks and blown head gaskets.
  • EASY TO USE. Remove the Schrader valve and turn the regulator off before applying shop air. Install the hose to the cylinder, the unit to an air supply, calibrate the leak gauge, and connect the unit to the cylinder hose. Diagnosis is made by observing the amount of leakage indicated on the cylinder leakage gauge and listening for leakage at various points of the car system.

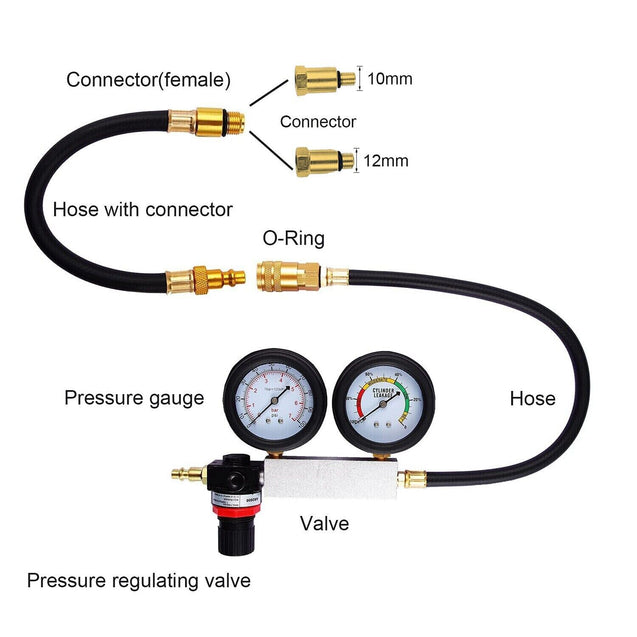

DUAL GAUGES ASSEMBLY WITH HOSE
Available with either single gauge shows % of cylinder leakage, or twin gauge manifold show cylinder leakage and cylinder pressure.
  • American Style Air Plug
  • Air Regulator Valve
  • Manifold Body
  • Cylinder Pressure Gauge, 0-100psi/0-7bar
  • Cylinder Leakage Gauge, Marked HIGH MODERATE LOW SET
  • 19" Rubber Nylon Resin Hose
  • Brass Quick Coupler
PRESSURE REGULATING VALVE
  • Pull out to use
  • Push back to lock
  • Clockwise twist to increase air supply
  • Anticlockwise twist to reduce air supply
  • Turn regulator knob fully anticlockwise before connecting to compressed air.
ADAPTERS
Connect to the corresponding sizes spark plugs on most gasoline engine
  • 14mm Brass Coated Aluminum Adapter
  • 14mm Brass Coated Aluminum Adapter + 12mm Aluminum Adapter
  • 14mm Brass Coated Aluminum Adapter + 10mm Aluminum Adapter
Items Included
  • One (1) Dual Gauges Assembly with 19" Hose and American Style Air Plug
  • One (1) 10" Rubber Nylon Resin Hose with 14mm Brass Coated Aluminum Adapter
  • One (1) 10mm Aluminum Adapter with O-ring
  • One (1) 12mm Aluminum Adapter with O-ring
  • Instruction
  • One (1) Customized Case
