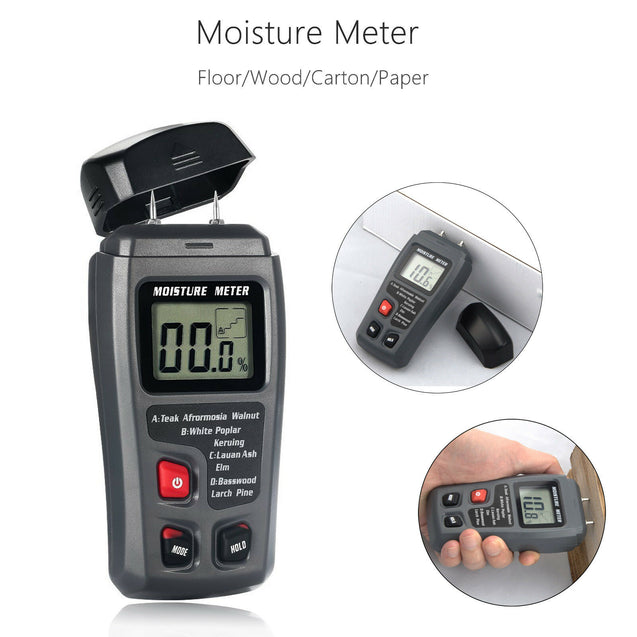

Wood Moisture Meter
This instrument is a conductivity moisture meter specifically designed for the wood industry and home. The instrument has four calibration scales, enabling the user to take accurate moisture measurements in 50 wood species. Moisture measurements can be taken using the integral pin electrodes. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
Display: 1 3/4" LCD characters display
Measurement Method: Electrical resistance
Moisture Range: 0~99.9% for Wood
Electrode length: 10mm (0.4”)
Electrode pins: Integrated
Auto Power OFF: After approx.10 minutes
Power Supply: One 9V battery
Meter Cover: ABS plastics
Operating Temperature: 0 to 40 ˚C (32 to 104˚F)
Dimensions: 145 X 67 X 32mm (5.7” x 2.6” x 1.3”)
Weight: 200g (7.0 oz)
Wood Species Group Table
A: Teak Walnut Ambrosia Rubber tree
B: Keruing White poplar Beech Cedar Tola
C: Lauan Ash Elm Fir Maple Padauk Tola
D: Basswood Larch Pine Birch
How to Use
STEP 1: Take off the protection cap of the meter, and press "POWER" button
STEP 2: Press "MODE" to select matching wood groups
STEP 3: Pushed the pins into the wood, and it displays reading
STEP 4: Until the reading stability， Press "HOLD", and you can read the record.
STEP 5: Press "POWER" button to close the device, or 15m Auto power off function save your battery
- One (1) Wood Moisture Meter
- One (1) 9V Battery
- User Manual
