5 Pack 12V 30/40 Amp 5-Pin SPDT Automotive Relay w/ Wires & Harness Socket Set
Be the first review

SKU: RLAY-SCKT-5PCS-16A42

Out of stock

$12.05

Secured and trusted checkout with
5 Pack 12V 30/40 Amp 5-Pin SPDT Automotive Relay w/ Wires & Harness Socket Set
Features
  • Universal usages: automotive setups, car sound systems, security systems, etc.
  • 12V 5 Prong Relays with 5 Prong Sockets wires.
  • 30/40 AMP high switching capability.

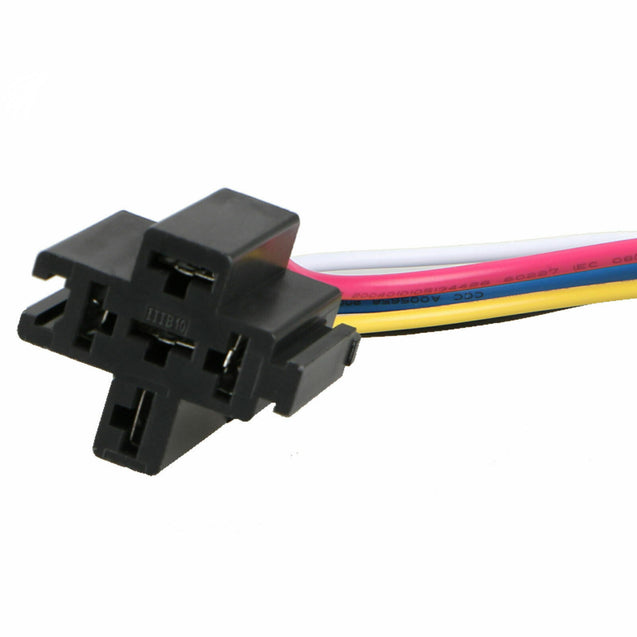

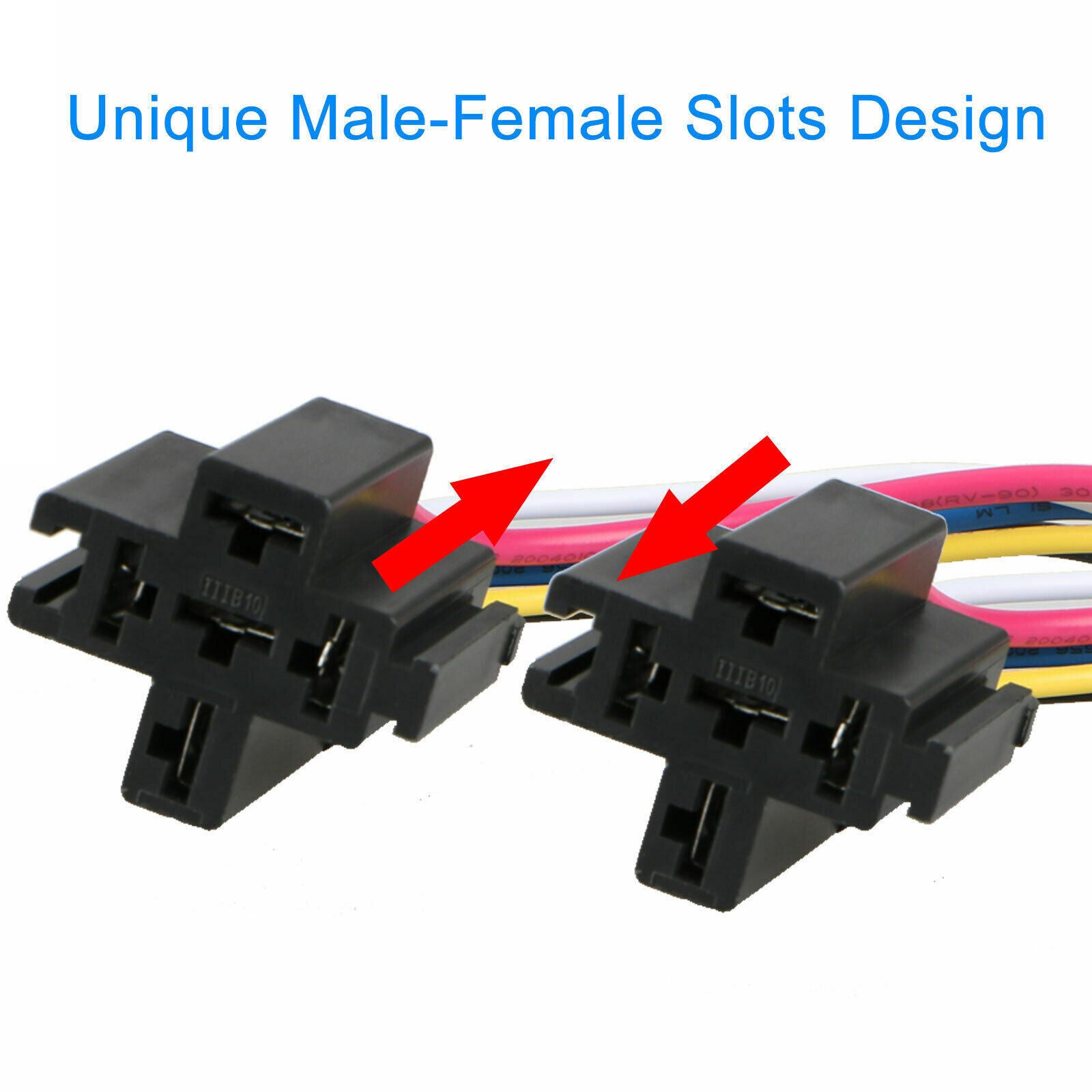

  • Heavy-duty impact molded relay socket with 5 WIRES.
  • Easy installation

Specifications

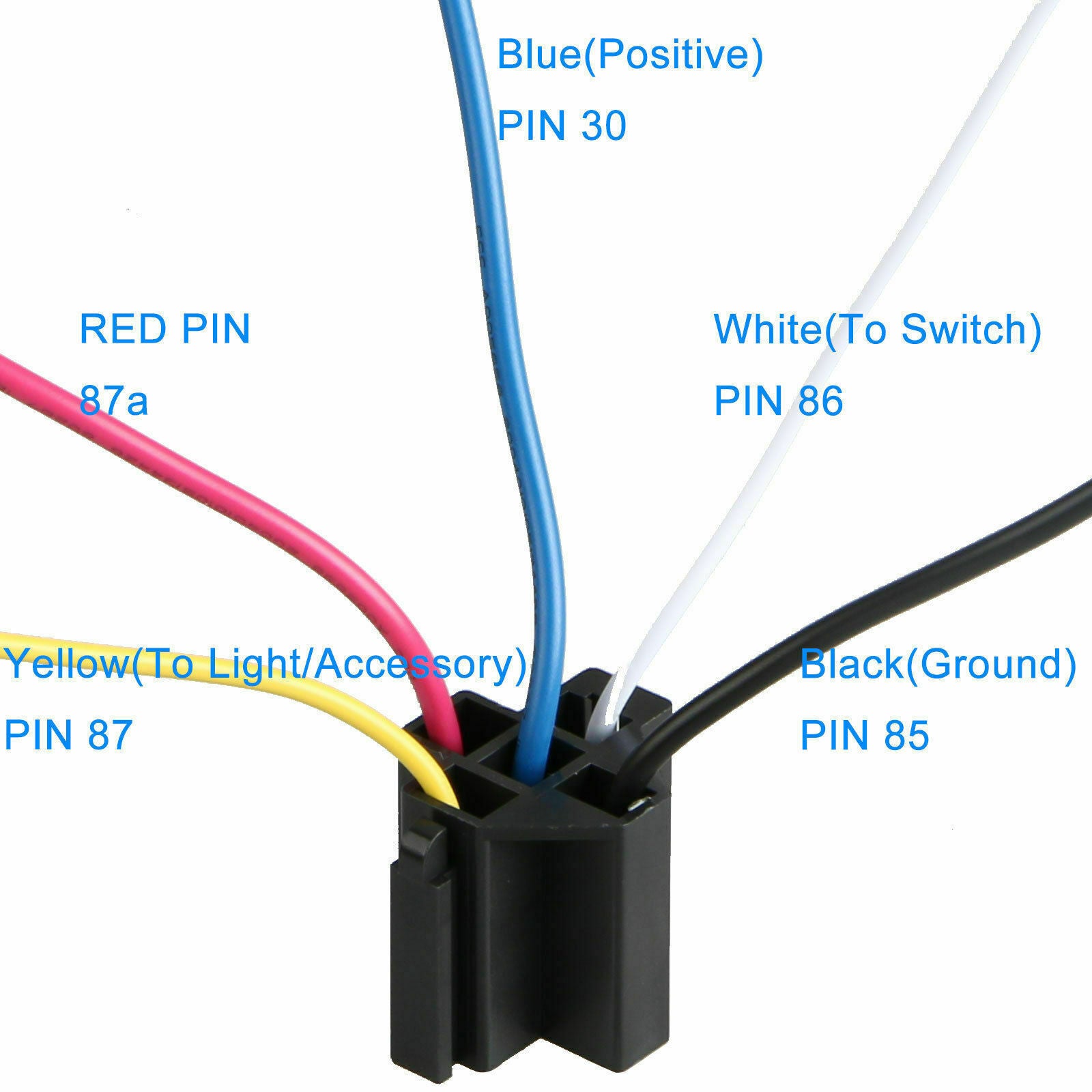

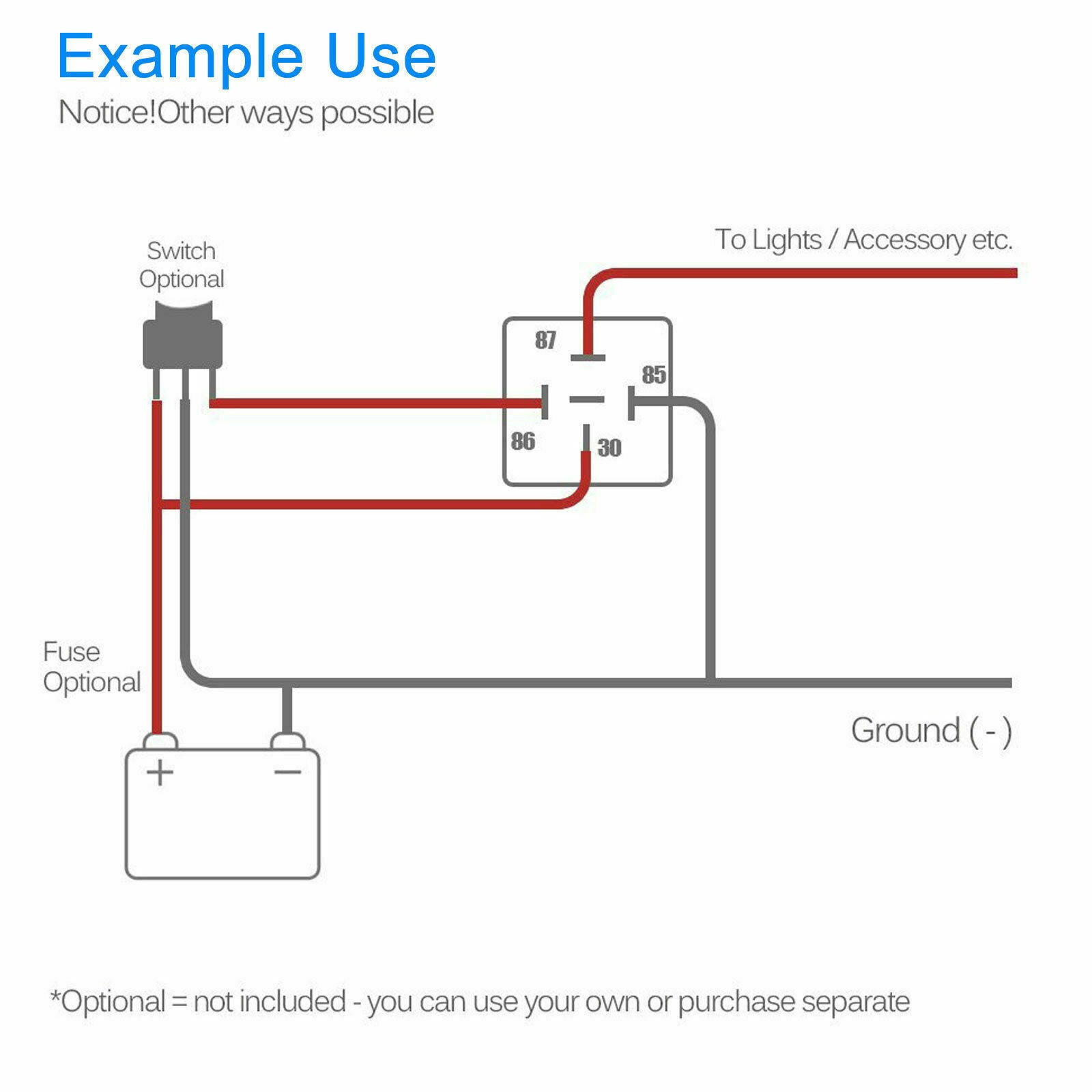

  • Wire Specifications: Black(Ground) PIN 85; Blue(Positive)PIN 30; RED PIN 87a; White (To Switch) PIN 86; Yellow (To Light/Accessory) PIN 87.

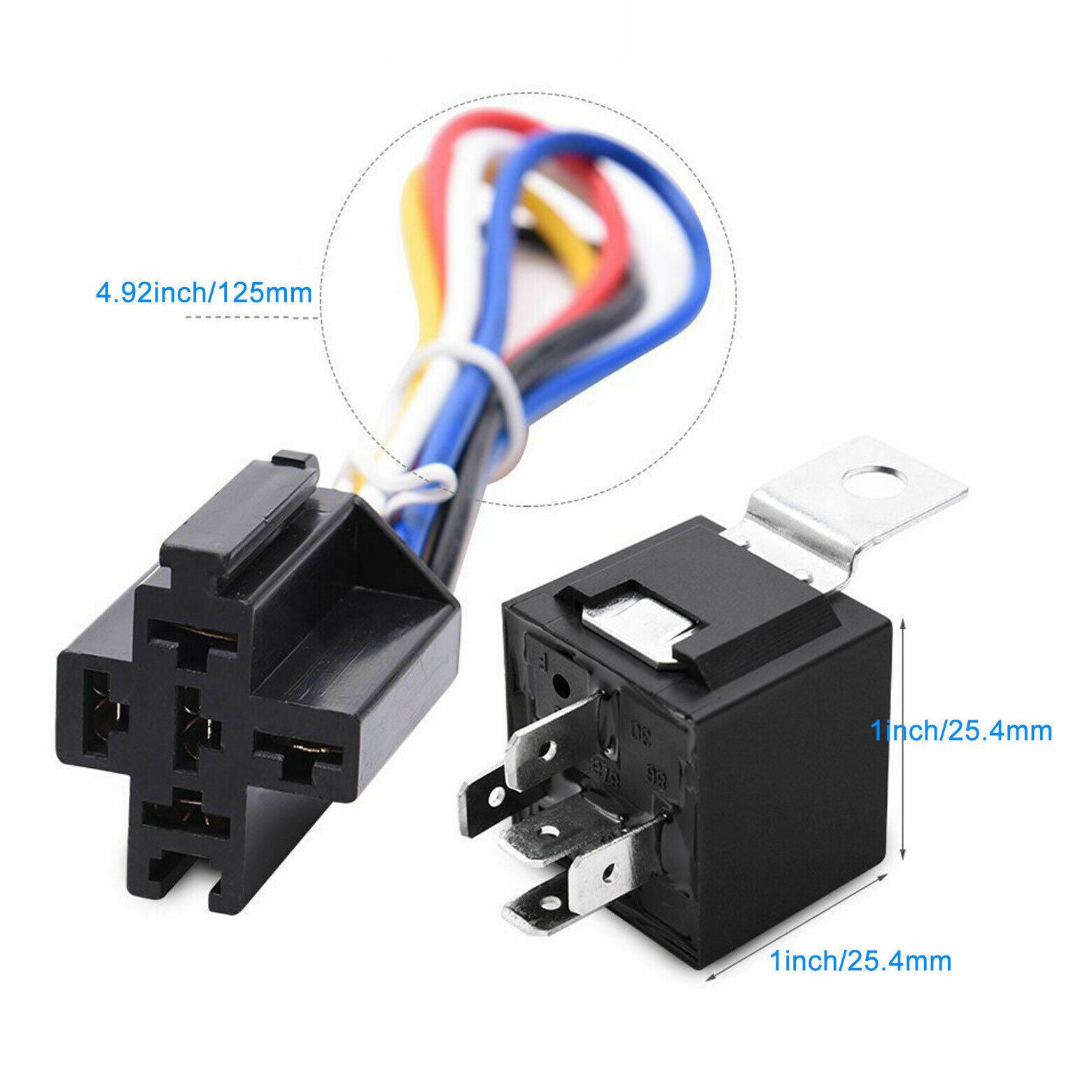

  • Dimension: 1.02*1.22*7.68 in (26*31*195 mm).
  • Weight: 2.08 oz (58g).
  • Contact Capacity:
    • Normal switching Capacity (res.load):
      • - NO 40A 14VDC
      • - NC 30A 14VDC
    • Max. switching current: 40A.
    • Max. switching voltage: 30VDC.
    • Max. switching power: 560W.
  • Characteristic Data:
    • Initial contact resistance (at 6VDC 1A): 50mΩ Max.
    • Operate time (at nominal volt.): 10 msec. Max.
    • Release time (at nominal volt.): 5 msec Max.
    • Initial insulation resistance: 100MΩ Min. (DC500V).
    • Initial dielectric strength:
      • - Between open contacts: AC500V, 50/60 Hz 1Min.
      • - Between coil and contact: AC500V, 50/60 Hz 1Min.
    • Vibration resistance:
      • - Functional: 10 ~ 55Hz at double amplitude of 1.5 mm
      • - Destructive: 10 ~ 55Hz at double amplitude of 1.5 mm
    • Shock resistance:
      • - Functional: 20G Min.
      • - Destructive: 100G Min.
    • Endurance (operations):
      • - Mechanical (at 7,200 ops./h): 10,000,000
      • - Electrical (at 600 ops./h): 100,000
    • Ambient Temperature: -40°C ~ +125°C (no condensation).

Items Included

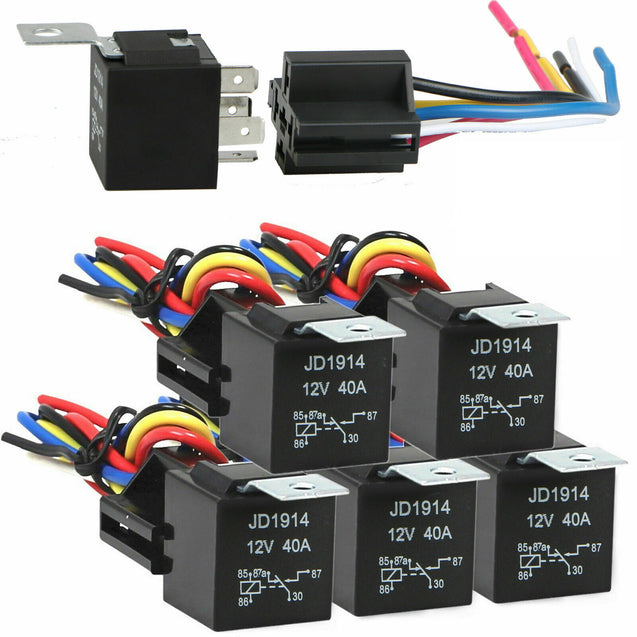

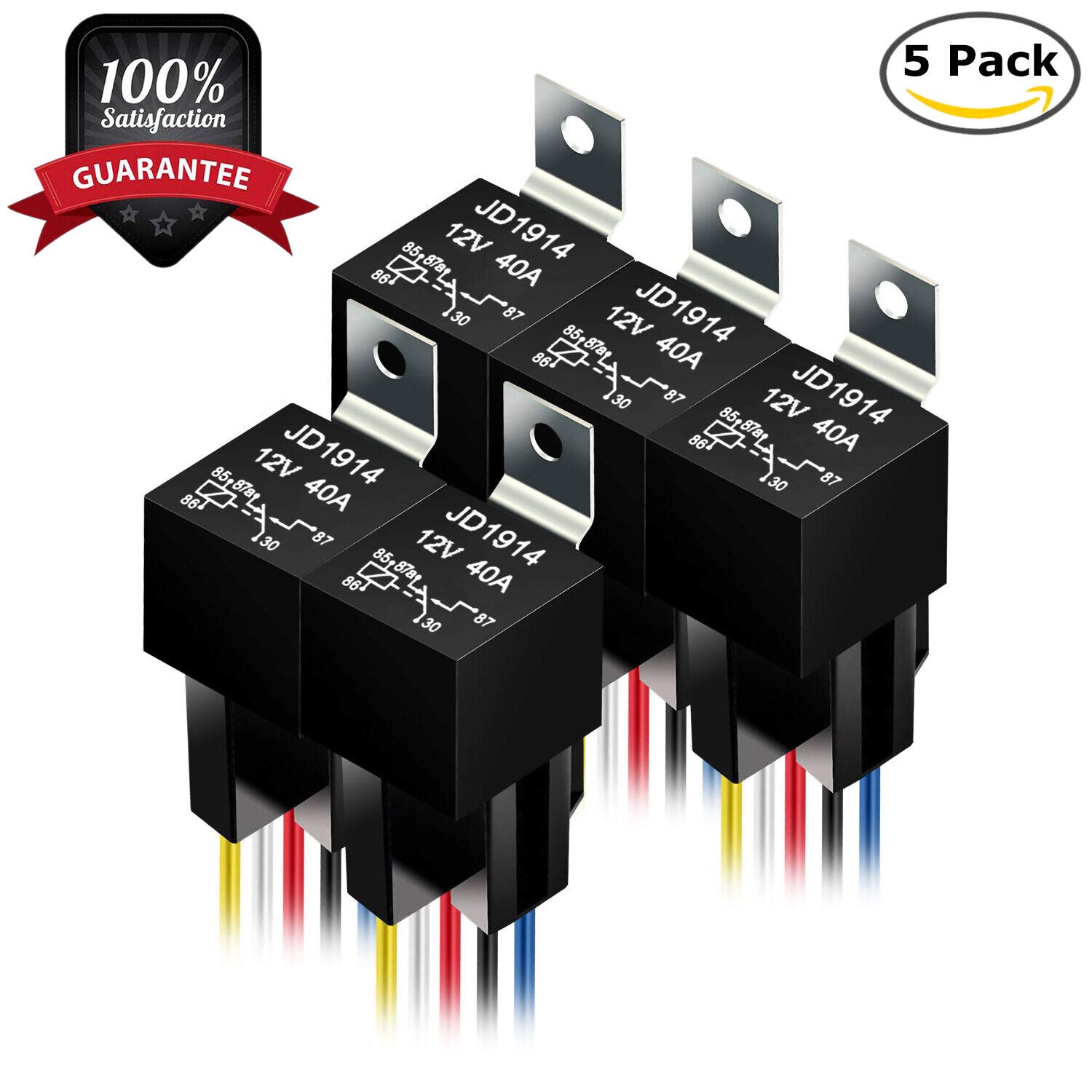

  • Five (5) Relays
  • Five (5) Sets of Socket Wires
